Prog's Fiancé Build

Since there is a few posts already of the HTPC builds, I’m going to do one of a new build for my fiance. She’s had my dv5 laptop for a while now and it’s not getting a BIOS corruption error (<- already done troubleshooting on it). Needless to say it will probably get sold, and she’ll need a new computer. Below is a list of components, I took advantage of some cyber monday deals.

*note there is no video card since I already have a 4850 to give her.
1 - COOLER MASTER Storm Scout SGC-2000-KKN1-GP Black Steel / Plastic ATX Mid Tower Computer CaseItem #: N82E16811119196 $99.99 $69.99
1 - ASUS P8P67 LE (REV 3.0) LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 ATX Intel MotherboardItem #: N82E16813131706 $139.99 $132.99
1 - CORSAIR Builder Series CX500 V2 500W ATX12V v2.3 80 PLUS Certified Active PFC Power SupplyItem #: N82E16817139027 $69.99 $46.99
1 - Intel Core i5-2500 Sandy Bridge 3.3GHz (3.7GHz Turbo Boost) LGA 1155 95W Quad-Core Desktop Processor Intel HD Graphics 2000 …Item #: N82E16819115073 $209.99 $194.99
2 - CORSAIR XMS3 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 Desktop Memory Model CMX8GX3M2A1333C9Item #: N82E16820145315 $95.98 $75.98($37.99 ea)
1 - Western Digital Caviar Blue WD5000AAKX 500GB 7200 RPM SATA 6.0Gb/s 3.5" Internal Hard Drive -Bare DriveItem #: N82E16822136769 $109.99
1 - Logitech G110 Black USB Wired LED Backlighting Gaming KeyboardItem #: N82E16823126087 $79.99 $39.99
1 - ASUS VE247H Black 23.6" Full HD HDMI LED BackLight LCD MonitorItem #: N82E16824236112 $219.99 $189.99
1 - LG Black Internal 12X Super Multi Blue with 3D Playback Blu-ray Disc Rewriter SATA WH12LS38 LightScribe Support - OEMItem #: N82E16827136239 $64.99
1 - COOLER MASTER V8 RR-UV8-XBU1-GP 120mm Rifle CPU Cooler Intel Core i7 compatibleItem #: N82E16835103055 $59.99 $48.99

Subtotal: $974.89

Build pictures to come, I’m hoping to have it by wednesday and have it complete by the weekend.

Holy balls does she game or actually use the computer for anything…

I keep buying 300-400 computers and they do everything I need :lol:

eek, for $1k you could probably just buy her an awesome laptop.

Haha I thought you were building a PC and calling it your fiancé.

No gaming, but she’s expressed an interest in it. I originally had an i7 processor. For the memory I’m filling all the slots (LOL), and with the cyber monday deal it was pretty cheap.

Thought about that, she wanted a desktop. The laptop she had was $800, I offered to lend her my $2,500 work laptop for the time being.

Original thread title was Prog’s Bitch Build.

Seems a little steep for not gaming… what else is she going to be using it for? 3D rendering? etc?

If not, an i3 would probably have been just fine.

Nope no 3D stuff, I wanted to “future proof” the build.

I came into this thread expecting you to be building a robot fiancé.

Good ideal just playing it safe, awesome deals and great components you chose

For the first time I’ll try and post pictures of the process. This will be about computer #5 that I’ve built, and about 84398242 that I’ve taken apart. If anyone has questions about doing a build lemme know. Parts should be here tomorrow.

Probably still piss and moan.

Looks good I would have went with a Asus Z68 motherboard though.

We should make a computer thread and how to build one with detailed pictures, I can’t count how many computers I have fixed or repaired or taken apart…

Its really not all that expensive being that its a ground up build,bigger monitor,keyboard,better HSF…etc

Looks good :tup: ,don’t forget the mouse!

She has a bluetooth one from the laptop…

Well after about 6 hours of unboxing, and putting everything together, the machine was up and running without a hitch. Here’s the pics start to finish on the build.

(Left to Right) CPU heatsink, Motherboard, RAM, i5 Processor

Power Supply and Processor

Motherboard

Blu-Ray Drive

Gaming Keyboard

500GB 6Gb/s Hard Drive

24" Monitor

Mid Tower Case

Unboxed and ready to go

Step 1: Put the standoffs in. If you skip this, you’ll short out the MOBO

Standoffs in! The even labeled which holes to use for each motherboard form factor.

I/O backplate is in. It’s a cheaper version of them, but whatever.

Motherboard installed and screwed in


CPU seated with some thermal paste on top

Wound up using a little bit more thermal paste to cover the entire chip. I had a tube of Zalman paste but I didn’t like the consistency of it. I spread the paste with my finger cause it’s easier, although it makes a goddamn mess



This case THANKFULLY had easy access to the back of the motherboard so I could screw in the CPU Heatsink backplate

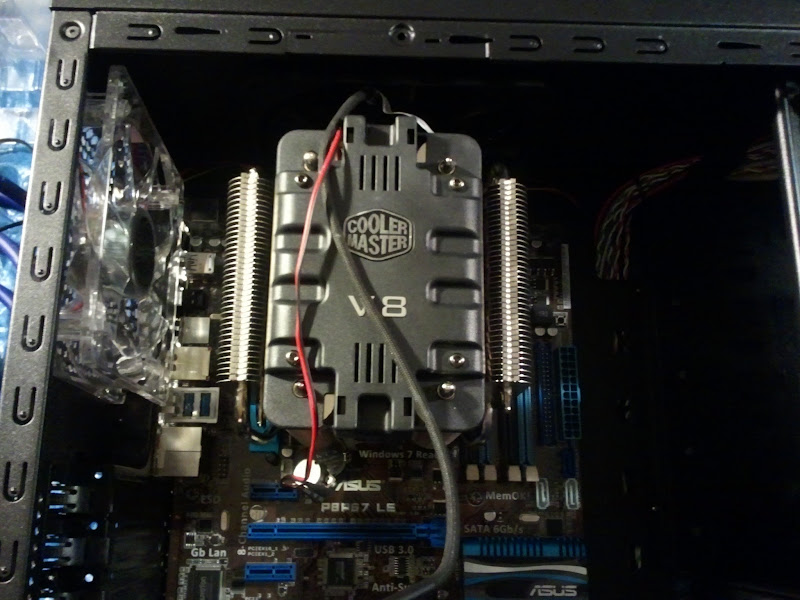

Heat sink is in! This thing was a monster (and a V8 ;)), I really wasn’t sure if it would fit in this case.



The heatsink came with a little knob backplate to control the fan speed. First time I’ve seen one of these, definitely cool idea!

16GB of ram installed (4x4GB)


Video Card is in (ATI 4850) which was free BTW. Also you’ll see the eSATA, Blu-Ray drive SATA, and the front panel lights/USB/Audio/Switches plugged in towards the bottom.

…After this I passed out on the floor for a bit…

Blu-Ray Drive/Burner installed

Power Supply installed

Connections all made for power, the one for the hard drive made the cover barely fit on. Not the prettiest, but I really don’t care for zip tying things down.

Complete with the everything put back together again.

Installing Windows on the first try. Usually I have to open the case 2-3 times to see what I missed connecting.

:lol: back when I worked a computer repair place you would be amazed at the number of people who forgot stand offs and would bring their shit in

wow, nice job…that CPU cooler looks awesome… That seems like a lot of thermal paste. Did any squeeze out when you put the heat sink on it? I usually don’t use that much, maybe I should be using more? hmmm

It probably is a little more than I normally would use. I tend to get enough to just get a thin coat on the top. I first used a Zalman paste, only because I couldn’t find my damn Arctic Silver paste…again. The Zalman paste was a bit dry, and wasn’t spreading nicely at all. I then moved to the paste (Cooler Master) that was included with the heatsink. None overflowed so it should be fine.

:tdown: to all that speed and not using an SSD drive for the OS.

And yeah, that’s a lot of money to drop on a desktop for someone who doesn’t do 3D work or gaming. “Future proof”? You could buy a new $300 computer now, in 2015 and in 2018 for what you dropped on this. I guarantee the equivalent of a $300 computer from 2018 will be light years ahead of this $1000 computer.

EDIT: And no boardjnky4, don’t use that much thermal paste. It should be a really fine skim coat for best performance. That mess he has is going to be full of air bubbles when the heat sink is cranked down on the cpu and the air has nowhere to escape because of all the ridges his finger painting created.

http://www.techpowerup.com/printarticle.php?id=134
