Joel's other project. NA-T lexus SC300

Builds
41

sweet

42

finished the downpipe and midpipe. will finish rest of exhaust this weekend…

very close clearance between runner 6… had to do some pretty exhaust cutting…

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1130%20(Medium).jpg
IMG_1130%20(Medium).jpg600×800

the midpipe vband

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1132%20(Medium).jpg
IMG_1132%20(Medium).jpg800×600

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1133%20(Medium).jpg
IMG_1133%20(Medium).jpg600×800

the modified manifold

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1134%20(Medium).jpg
IMG_1134%20(Medium).jpg600×800

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1141%20(Medium).jpg
IMG_1141%20(Medium).jpg600×800

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1143%20(Medium).jpg
IMG_1143%20(Medium).jpg600×800

last cut was a real biatch

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1136%20(Medium).jpg
IMG_1136%20(Medium).jpg600×800

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1138%20(Medium).jpg
IMG_1138%20(Medium).jpg600×800

off the car

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1140%20(Medium).jpg
IMG_1140%20(Medium).jpg800×600

its getting closer, still have the wiring mess to figure out, the C.O.P setup to figure out, and still waiting on the built NA head to come back.

43

looks good. you’ve done alot to that car.

44

did some custom fiberglass work for my center console area… it was really ugly before with it just cut and open:

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/th400_setup/IMG_0148%20(Medium).jpg
IMG_0148%20(Medium).jpg800×600

process:
fiberglass and duraglass

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/center_console/IMG_1146%20(Medium).jpg
IMG_1146%20(Medium).jpg800×600

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/center_console/IMG_1144%20(Medium).jpg
IMG_1144%20(Medium).jpg800×600

i need to get a lighter shade of brown to match the steering column though. Next i will be installing the gauges into this console, and maybe a radio as well… havent decided yet on the radio.

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/center_console/IMG_1149%20(Medium).jpg
IMG_1149%20(Medium).jpg800×600

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/center_console/IMG_1153%20(Medium).jpg
IMG_1153%20(Medium).jpg800×600

not bad for my first attempt at fiberglass work :wink:

45

wow, that is impressive…looks great, i wish i had that kind of knowledge

46

nice work

47

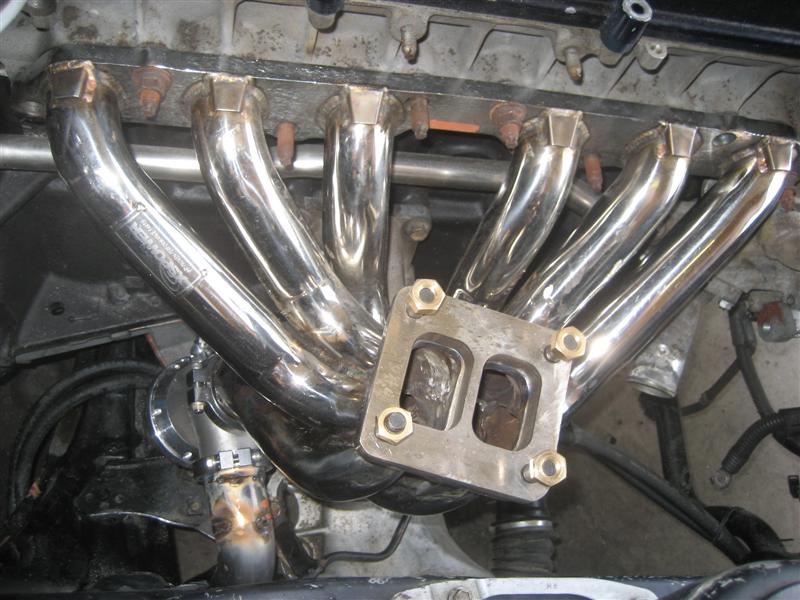

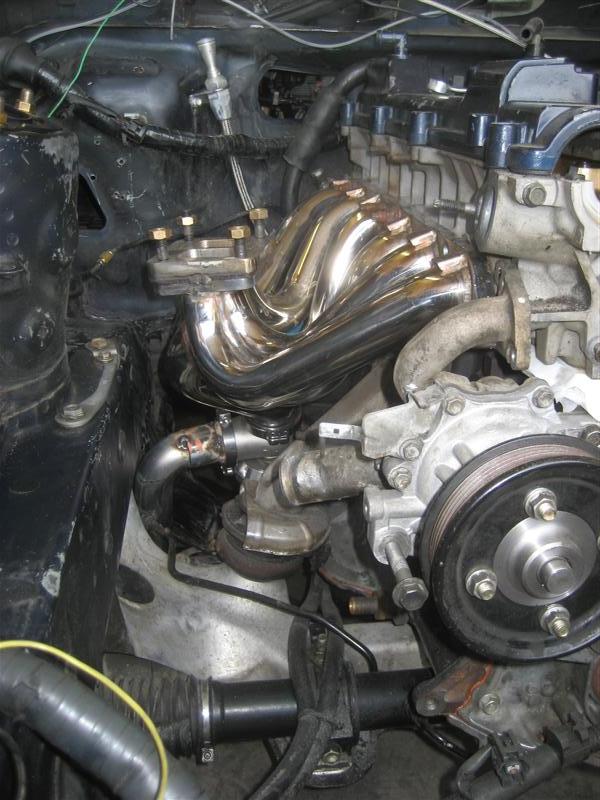

dump pipe fab (here u can also see the t4 adapter permanently in place:

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/s380/IMG_1161%20(Medium).jpg
IMG_1161%20(Medium).jpg600×800

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/s380/IMG_1162%20(Medium).jpg
IMG_1162%20(Medium).jpg600×800

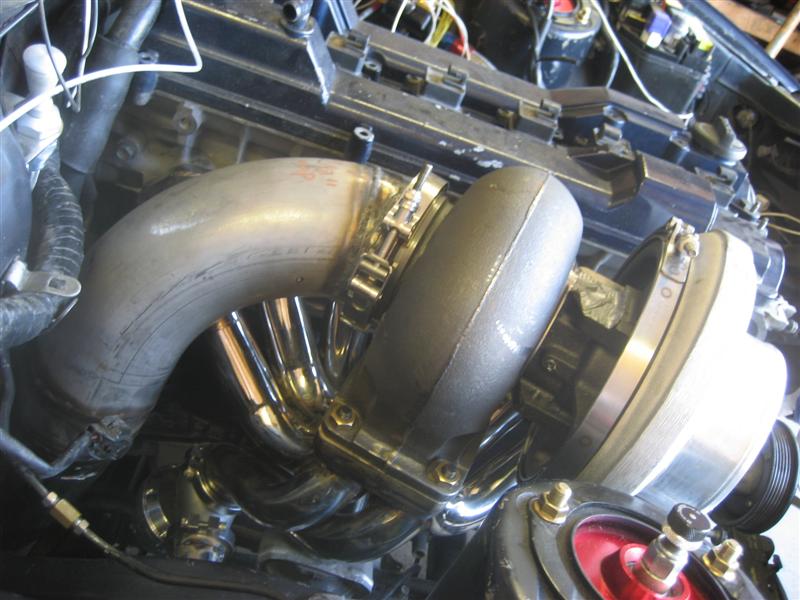

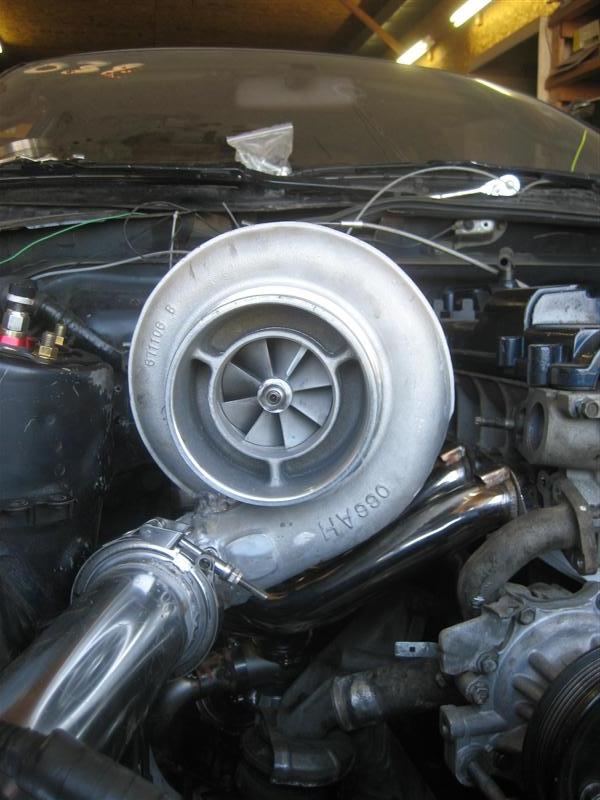

And the downpipe i made is now complete, as well as the intercooler piping… its coming along nicely

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/s380/IMG_1166%20(Medium).jpg
IMG_1166%20(Medium).jpg800×600

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/s380/IMG_1167%20(Medium).jpg
IMG_1167%20(Medium).jpg600×800

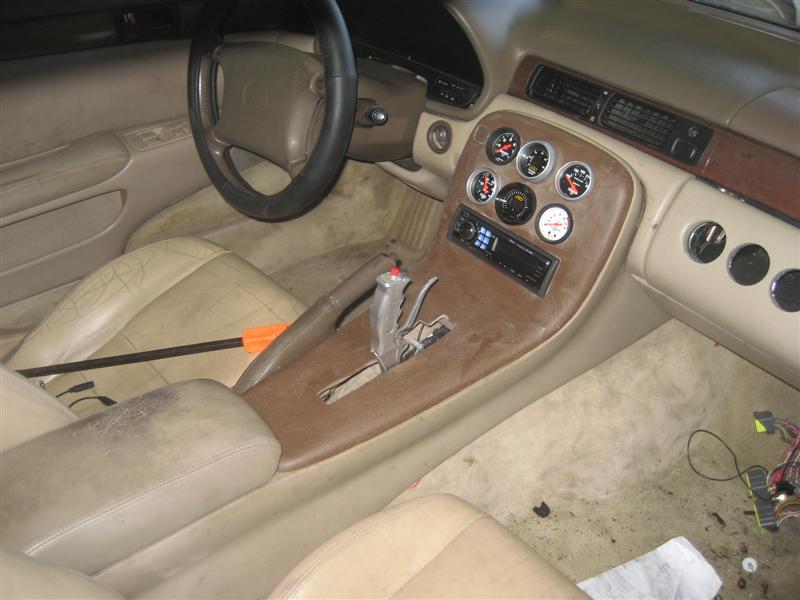

finished center console (probably gonna spray this light tan to match the beige interior)

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/s380/IMG_1174%20(Medium).jpg
IMG_1174%20(Medium).jpg800×600

48

looking good :cool:

49

looks great

50

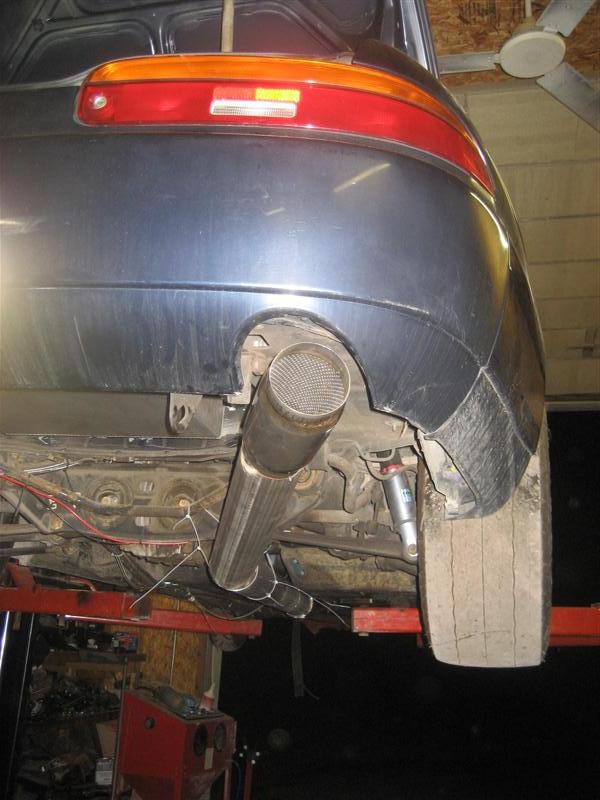

fabbed up the exhaust tonight. all stainless 4"

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1178%20(Medium).jpg
IMG_1178%20(Medium).jpg600×800

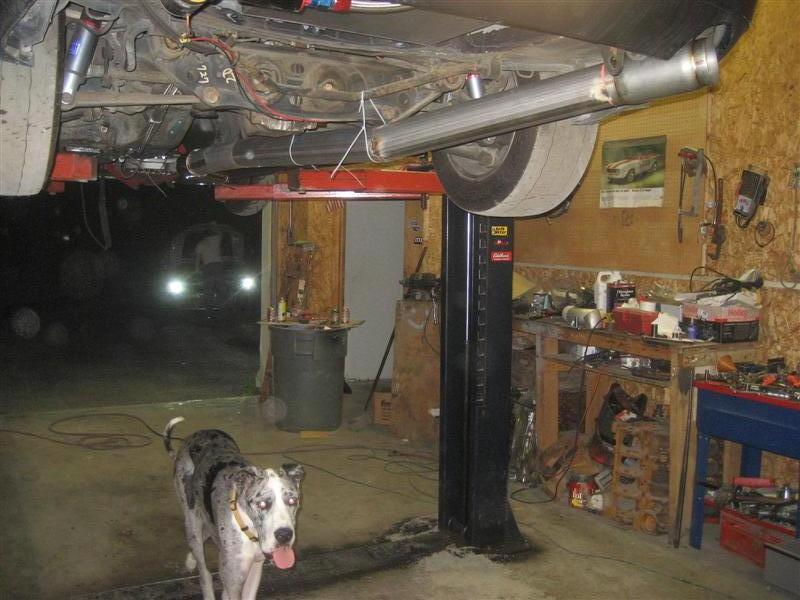

my fabrication buddy

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1183%20(Medium).jpg
IMG_1183%20(Medium).jpg800×600

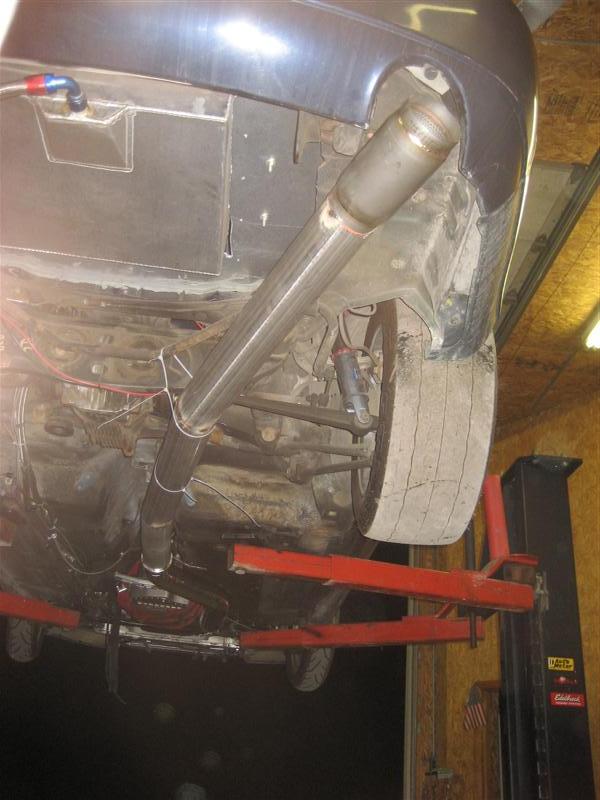

turned out really nice… can’t wait to hear it

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1179%20(Medium).jpg
IMG_1179%20(Medium).jpg600×800

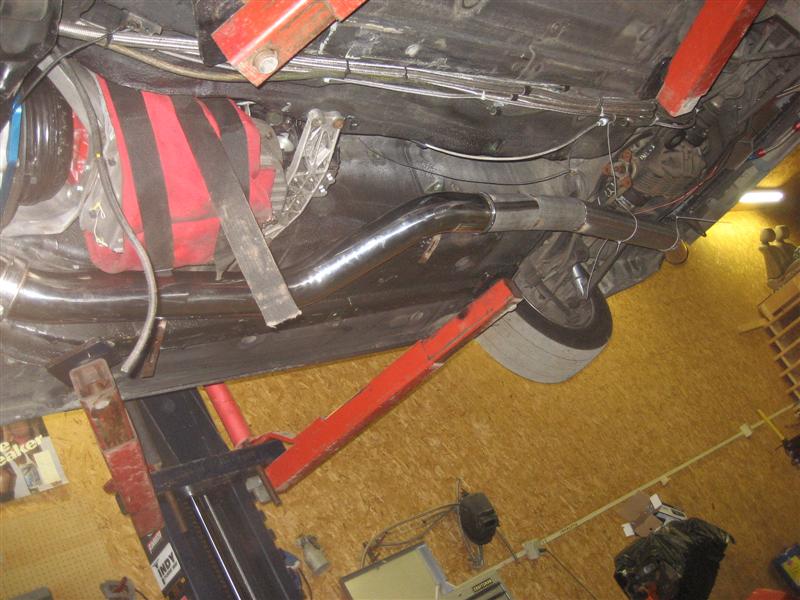

http://www.2jzpower.com/pictures/Joel_Grannas/1993_sc300/exhuast/IMG_1182%20(Medium).jpg
IMG_1182%20(Medium).jpg800×600

I’ll get some better pics in the daylight once i get it back from the TIG guy…

51

lookins good

52

Nice Joel!

53

almost there:

main things need to do yet:

  1. wire the coil on plug system, clean up some of the other wiring
  2. wait for cam gears with hall sensor to come back from DaveH, then install timing belt etc.
  3. install 1600cc injectors
  4. get it tuned (not sure who to get yet)

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/almost-there/IMG_1214%20(Medium).jpg
IMG_1214%20(Medium).jpg800×600

http://2jzpower.com/pictures/Joel_Grannas/1993_sc300/almost-there/IMG_1213%20(Medium).jpg
IMG_1213%20(Medium).jpg800×600

hope to fire it up within 2 weeks

54

can’t wait to see the numbers it puts down

55

Sick, just sick

56

damn that’s crazy.

off topic, but what kind of dog is that? looks really cool.

57

100% great dane (merlequin color)

58

Those are nice dogs, reasonably rare color scheme also. Oh, and nice car, when’s it gonna be on the road?

59

the parts i’ve been waiting on are supposed to show up thursday! it would be great to get it running this weekend, but i have a lot going on right now (selling house, 4th weekend, etc)

60

it’s alive! more to come
