My bagged, dropped & LSX swapped 1966 Chevy C10 truck


#1

1 year ago bpipe and I went to Elmira and met Terry Ostrander, a wacky retired racer. Among his collection of roadkill cars was this '66 Chevy C10 long bed. The sheet metal was not good but it was a big back window deluxe cab truck that is a little tougher to find. And it was complete. He gave us day old cookies from his bakery and a bag of peaches from his produce store. Dude was incredible.

https://2.bp.blogspot.com/-zaNmqoMIOYo/WBjO8USeeUI/AAAAAAAAAHA/e5ZQ-IADEWk4wRzeLe4VfxKPje6SHi_7wCPcB/s640/00U0U_kYuzxSm2ZxB_1200x900.jpg

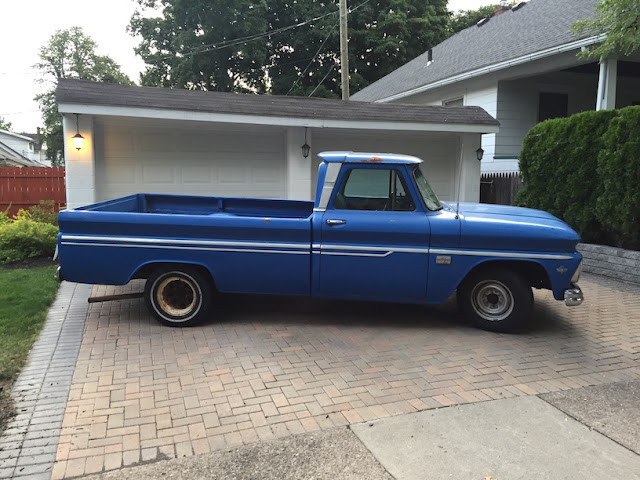

This truck was so shitty that we barely got it off the trailer and into the driveway. This is literally where it died.

https://2.bp.blogspot.com/-DZlwW76P5A0/WBjTQ2-aXVI/AAAAAAAAAIE/Q8_28EqjT44woNQ6pKfidXlpw7oGym2XwCPcB/s640/IMG_2338.JPG

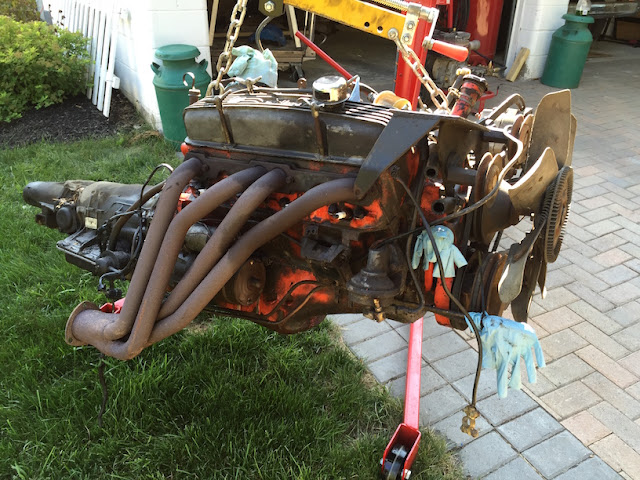

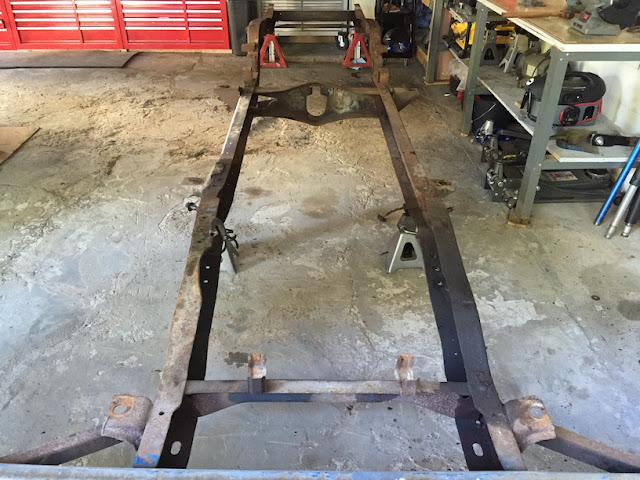

Pretty much got right to work tearing it down to the frame.

https://1.bp.blogspot.com/-7ExVWrUNRmI/WBjTQy_520I/AAAAAAAAAII/T5IQfout3EM_FFPGwKMEUYDYfzQFjYeAQCPcB/s640/IMG_2340.JPG

https://2.bp.blogspot.com/-c-BZqsge7Sg/WBjTb503wGI/AAAAAAAAAQg/aL9KTdVzodEHwNcKiJ6AjplL9vdu53I7QCEw/s640/IMG_2360.JPG

https://4.bp.blogspot.com/-vclSAWF9cVo/WBjTdSH9d5I/AAAAAAAAAI4/qPw997h_dYIvjrce_-jbprYNhpNXxnalwCEw/s640/IMG_2377.JPG

https://2.bp.blogspot.com/-oHZgjVoh_98/WBjTdmlqqWI/AAAAAAAAAI8/CtDpFBoHfI4VcMHFLAnemI3I515435GJQCEw/s640/IMG_2379.JPG

https://1.bp.blogspot.com/-luSCJ_SCrYY/WBjTeKG7tjI/AAAAAAAAAJE/7eV56qF1cKQV3H2smRLyDc5zOGdBOj1bQCEw/s640/IMG_2381.JPG

https://2.bp.blogspot.com/-RYE-G_sddss/WBjTfaWkLAI/AAAAAAAAAJg/VnhIItCD_s4wJ__7DgWZ6NUexkHZC9pwgCEw/s640/IMG_2392.JPG

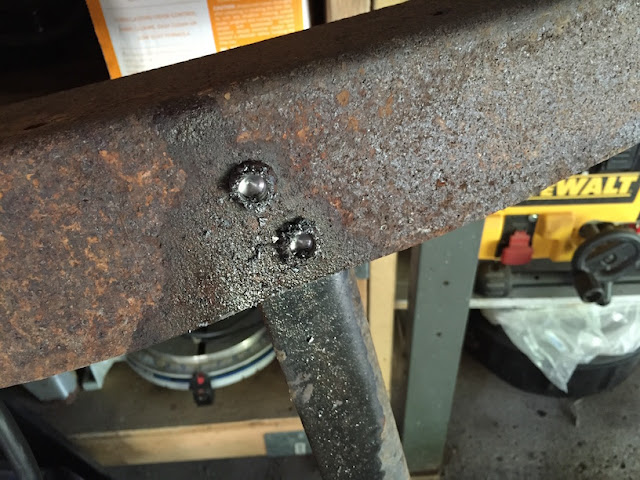

I drilled what felt like 1 million rivets.

https://2.bp.blogspot.com/-vWjV0wnyU9E/WBjTfV17hdI/AAAAAAAAAQs/A59Cu9Ysw0gNGLPJMe94IbJhK3IeI6n1wCEw/s640/IMG_2391.JPG

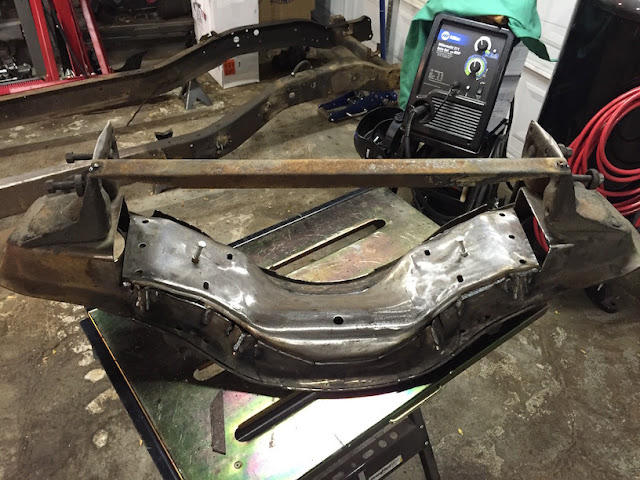

Then I cut a bunch of things.

https://4.bp.blogspot.com/-tqR3wLke08c/WBjTgk-itEI/AAAAAAAAAQs/X_ZflutO6wYehMELBZJe2kSlFZsiMfHMgCPcB/s640/IMG_2427.JPG

https://4.bp.blogspot.com/-2Wjq-FNOL8s/WBjTmumRqZI/AAAAAAAAAQs/rrErPnZTqg010HPTfW7fag1Mrl1OGYeIACPcB/s640/IMG_2505.JPG

https://1.bp.blogspot.com/-ge2PFqR6jTw/WBjTpeBcZvI/AAAAAAAAAQs/Fkr-ZsiuDFgT8ESx3P0-Mv8cG4fmVJPigCPcB/s640/IMG_2599.JPG

https://4.bp.blogspot.com/-L4xEdYxYGkU/WBjTrQsWA6I/AAAAAAAAAQs/pzf3xE6z2eo2Ez7-tS05PuMrAr4Dsn3awCPcB/s640/IMG_2619.JPG

https://2.bp.blogspot.com/-vlCbWho8vH4/WBjTsG4gEHI/AAAAAAAAAQs/KXGUHmqtt2s0TWW5v0-xcN3aWlRLxk8HQCPcB/s640/IMG_2623.JPG

https://1.bp.blogspot.com/-jlFjvzVRcIA/WBjTt4ZDdqI/AAAAAAAAAQs/M4fsVqCkGF403LOIqiPTKpyVxHmmr_FrACPcB/s640/IMG_2633.JPG

What I did in the rear:
Added a big notch, custom panhard bar, bags on the trailing arms, moved everything back 1" so the wheels are centered in the wheel fender opening, notched/flattened the center crossmember.

https://1.bp.blogspot.com/-f_Cbz0NUMkk/WBjTsZiovSI/AAAAAAAAAQs/sph89l91p_IgXZAG1jzQuX71nvR_XVxkQCPcB/s640/IMG_2626.JPG

What I did in the front:

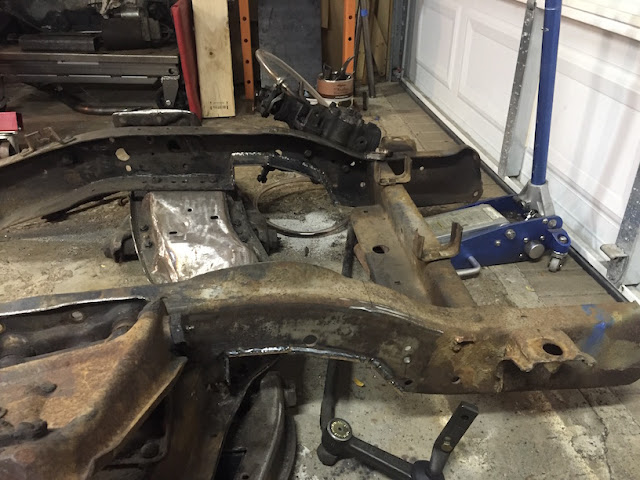

I removed 2" from the front crossmember. This allows the truck to sit 2" lower in the front and keep the suspension sorta close to drivable and the engine
mounts in same spot, although I ended up raising the motor 1" anyways. The steering also needed to be raised 2" and forward 1", so a notch was cut for that:

https://2.bp.blogspot.com/-r0N2q-e5W7U/WBjTv88AWHI/AAAAAAAAAQs/LPG6Yc1oYIYmWIC-NXVOyzaulXmbiPlyQCPcB/s640/IMG_2671.JPG

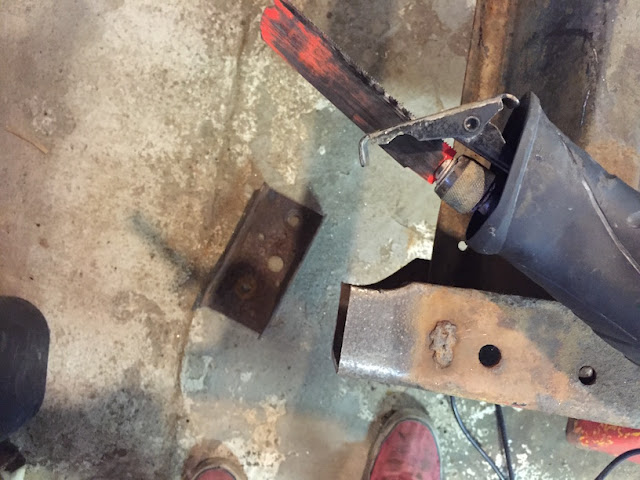

Cut the long bed frame down to short bed specs

https://4.bp.blogspot.com/-OjRokCMwc8M/WBjTyCJTqkI/AAAAAAAAAQs/2XJxFxi6p7AeZ_ZQ-fmGr-xESewCHUjMgCPcB/s640/IMG_2710.JPG

https://1.bp.blogspot.com/-vpbX0qnSC0U/WBjTyW6PZoI/AAAAAAAAAQs/Se4aOwrxreoHyvtcnZ8lCCUJ5qvrFR_-wCPcB/s640/IMG_2711.JPG

https://2.bp.blogspot.com/-pAX6RnJbnjE/WBjTg_zwuFI/AAAAAAAAAQs/NIkS6OGPBpcuihYwau4ae25SvPNehXFvACPcB/s640/IMG_2428.JPG

Painted

https://4.bp.blogspot.com/-mvBWnB97cjQ/WBjT0RAUqKI/AAAAAAAAAQs/ACrYUYvvbJozjnt0srVXYcD8-5g9m6hogCPcB/s640/IMG_2725.JPG

Cab test fit. Stoked.

https://1.bp.blogspot.com/-IzZHz06VzNc/WBjTwr2n-oI/AAAAAAAAAQs/a1KDqnI49G46q1hfo4HBvzAMm1ptB29SwCPcB/s640/IMG_2689.JPG

Then I did a bunch of cab metal work that I’m not very good at and was also boring.

https://4.bp.blogspot.com/-uKY9Xak2OQ8/WdMHPkNoP6I/AAAAAAAAAVo/aLcqXLfyx0EbzusVL1el76lXMDs_28qHQCLcBGAs/s640/15035708_2153262634898153_6443138070047883264_n.jpg

https://3.bp.blogspot.com/-aLjl0ocTAJU/WdMHUcy_wsI/AAAAAAAAAVw/qYhJbCzfaYc69sZmKwpczdVGzagIB_p9wCLcBGAs/s640/IMG_2929.JPG

https://3.bp.blogspot.com/-B7MiTcvzG1I/WdMHUhWrTyI/AAAAAAAAAV0/wwqtwtwmvjk9cHUJDf5Gu1tZhM7WJ9G3ACLcBGAs/s640/IMG_3294.JPG

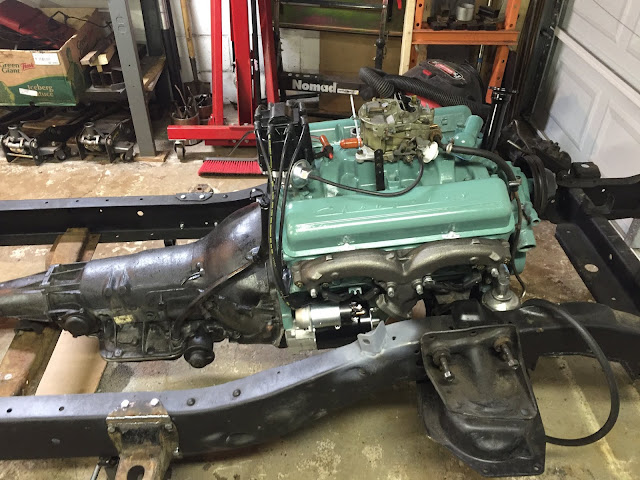

Then I cleaned up the turd small block

https://2.bp.blogspot.com/-XgOAQnLS9Ak/Wbqbnq0DxWI/AAAAAAAAAVA/xZ8lZU0TvM49uKidHefVufGwgJazDv8-QCK4BGAYYCw/s640/IMG_2854.JPG

I spent a few weeks making it all nice. Then tried to start it and realized it was shitty. So I bought a 6.0 / 4L80e combo the next day.

https://scontent-ort2-1.cdninstagram.com/t51.2885-15/e35/21373801_1916206348701622_5084397983110266880_n.jpg

Did the normal custom wiring harness stuff from lt1swap.com that everyone does.

https://1.bp.blogspot.com/-QqFjQCyRZkY/WdRY5_yiyyI/AAAAAAAAAWY/PCm7nHk2eN43wxN_bqp8u0mJV-FVsySSgCLcBGAs/s640/DSC_0008.jpg

Airlift kit

https://4.bp.blogspot.com/-qk3v8WzCJUk/WdRYzb26x_I/AAAAAAAAAWU/-6_PA7l4TVILyjGwBmkF5dM6AXE02S8rwCLcBGAs/s640/DSC_E0015.jpg

https://2.bp.blogspot.com/-AX3P-Tgj1Xw/WdRZF1M2ZzI/AAAAAAAAAWc/Qi5D90nMyKgS-75h-5ytrcIdSm2I6tlvACLcBGAs/s640/IMG_3885.jpg

This was a pleasant surprise. The original deluxe seat cover hidden under 2 aftermarket covers and in fantastic shape.

https://3.bp.blogspot.com/-4U0NY1OHiQc/WdRZHhnpQDI/AAAAAAAAAWg/yZioIBWlQAswsrCfgpLpEPtotvosJ4uFQCLcBGAs/s640/IMG_3915.jpg

Then I started to throw it all together

https://1.bp.blogspot.com/-96AHC9TdWlw/WdRZM3mH9sI/AAAAAAAAAWk/hLWlyQ6Q7_YWITxUWYAuuKbAA62ZkD14wCLcBGAs/s640/IMG_3919.jpg

Cut the longbed down. 12" in front of the wheel, 8" behind.

https://4.bp.blogspot.com/-lNkzgOZPils/WdRZQ9dAvzI/AAAAAAAAAWo/B4jDyYY1NoszDRZOPtD34Icyq6Eo-qbugCLcBGAs/s640/IMG_4010.jpg

https://3.bp.blogspot.com/-BhSjZ25mk7c/WdRZSBPMWGI/AAAAAAAAAWs/-dK04eBHpNIzX1l0SfYkerL2ww68vTKogCLcBGAs/s640/IMG_4011.jpg

Annnnnnnd finally

https://4.bp.blogspot.com/-0zofC1ofkPA/WdRZULsPw1I/AAAAAAAAAWw/2JiM1bJSpK0A24k2R_ZbHa_JHbLjxePVQCLcBGAs/s640/IMG_4034.jpg

https://scontent-ort2-1.cdninstagram.com/t51.2885-15/e35/22220849_119475558739543_7424584276672249856_n.jpg

Right now the truck is in sort of a prototype stage and i’m working out lots of little bugs. I am hoping to just cruise it around all rat roddy for the next year and enjoy that the paint doesn’t matter :smiley:

Extra special amazing thanks to everyone to has helped along the way including but not limited to Cass, Cotter, Mingle, Bpipe, transporter and kosko <3

I would also like to thank Harbor Freight who, without their entire inventory, this would not have been possible lol
