Project B16 CRX

were u able to find/mismatch mounts that are going to work? everything i saw for b16/b18 into a crx were custom mounts

im not sure if the mounts are different… but my friend 97_b18b had a b18 in his crx, maybe pm him and ask what he used

the man to talk to would be shane he had his high compression ls vtec in is crx

the only mounts that will work are swap mounts meant for a crx, but they require the drivers side block mount from a 90-93 integra and the rear T bracket also

yea thats what i was telling him, the only thing i found was upgraded motor mounts meant for a bseries into a crx… which were like 400$

http://i197.photobucket.com/albums/aa271/shrekb18/CRX300.jpg?t=1232169839

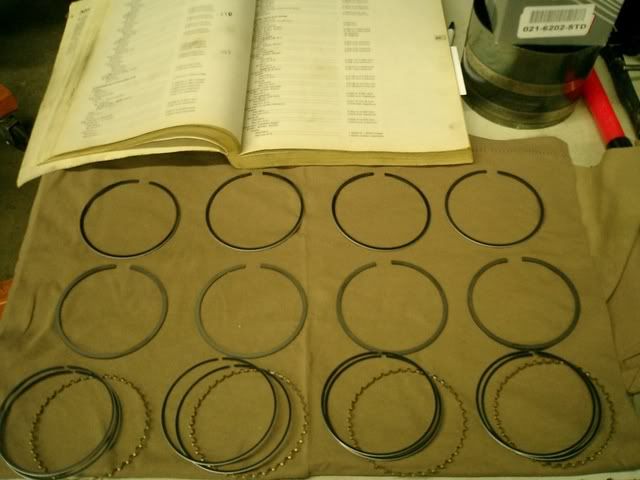

http://i197.photobucket.com/albums/aa271/shrekb18/CRX301.jpg?t=1232169856

http://i197.photobucket.com/albums/aa271/shrekb18/CRX302.jpg?t=1232169885

http://i197.photobucket.com/albums/aa271/shrekb18/CRX303.jpg?t=1232169916

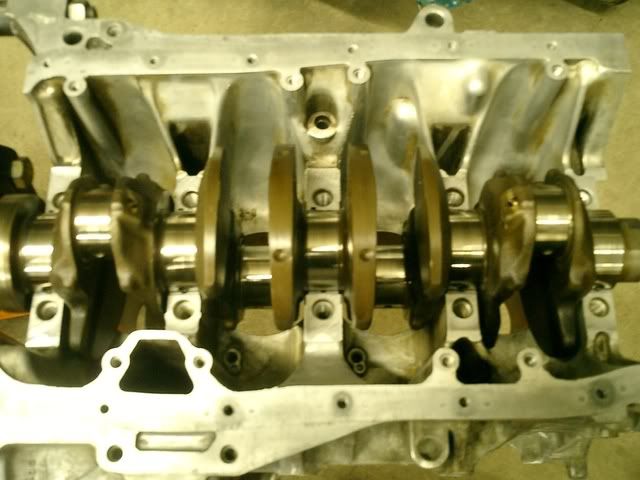

http://i197.photobucket.com/albums/aa271/shrekb18/CRX304.jpg?t=1232169962

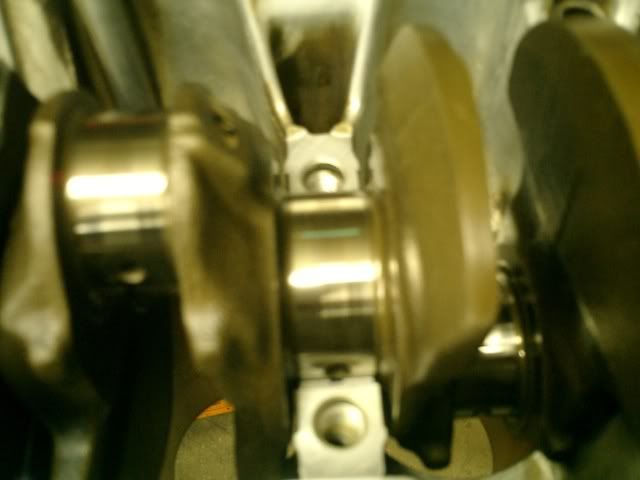

http://i197.photobucket.com/albums/aa271/shrekb18/CRX305.jpg?t=1232169999

http://i197.photobucket.com/albums/aa271/shrekb18/CRX306.jpg?t=1232170026

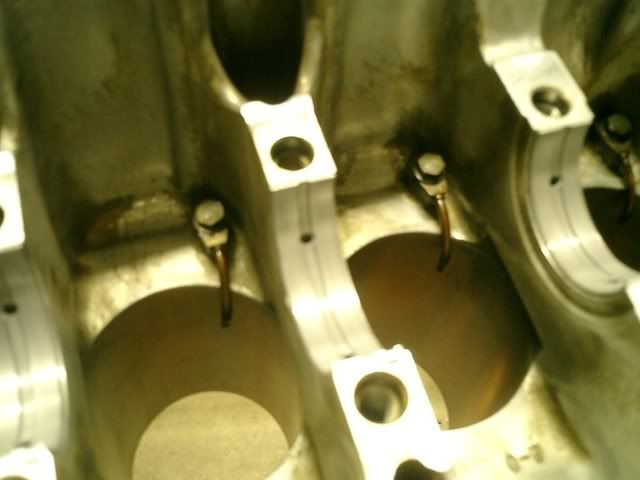

http://i197.photobucket.com/albums/aa271/shrekb18/CRX307.jpg?t=1232170060

http://i197.photobucket.com/albums/aa271/shrekb18/CRX308.jpg?t=1232170342

http://i197.photobucket.com/albums/aa271/shrekb18/CRX309.jpg?t=1232170108

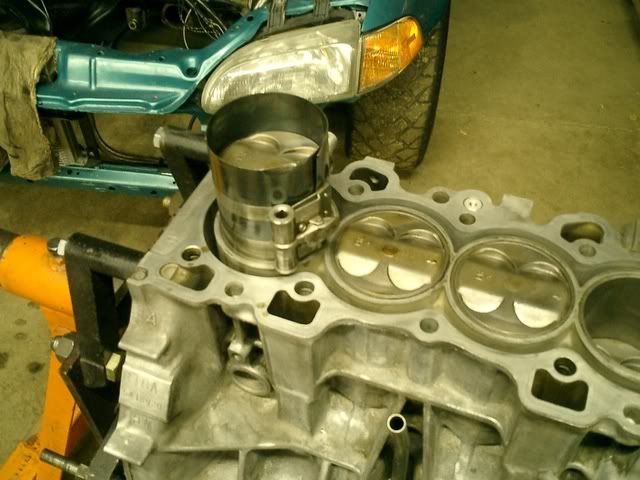

http://i197.photobucket.com/albums/aa271/shrekb18/CRX310.jpg?t=1232170128

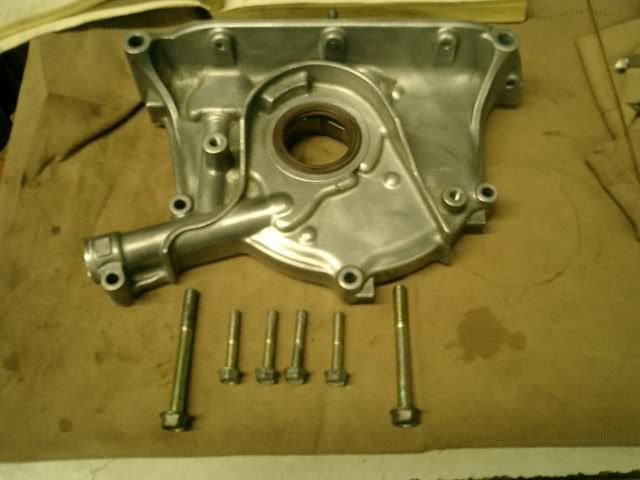

http://i197.photobucket.com/albums/aa271/shrekb18/CRX311.jpg?t=1232170161

http://i197.photobucket.com/albums/aa271/shrekb18/CRX312.jpg?t=1232170187

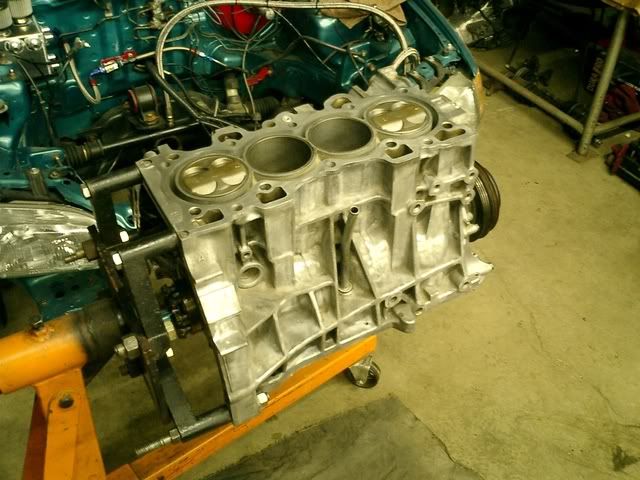

http://i197.photobucket.com/albums/aa271/shrekb18/CRX313.jpg?t=1232170214

lookin good :tup: when are you planning on finishing this build?

I really like this project, Its cool how its pretty minimal, but you are taking your time and enjoying putting the motor together, cleaning it up and not just slapping it back in. Something about motor assembly makes me feel good.

One method ive used in the past is using Duplicolor engine clear to paint the bare alum so it will stay clean and shiny

:tup: nice work man

ya probably did but did you plastigauge the bearings?

Well as soon as I can but there’s a whole nother half to this.

Might have to try that!

Thanks bud!

You have to look close but its there!

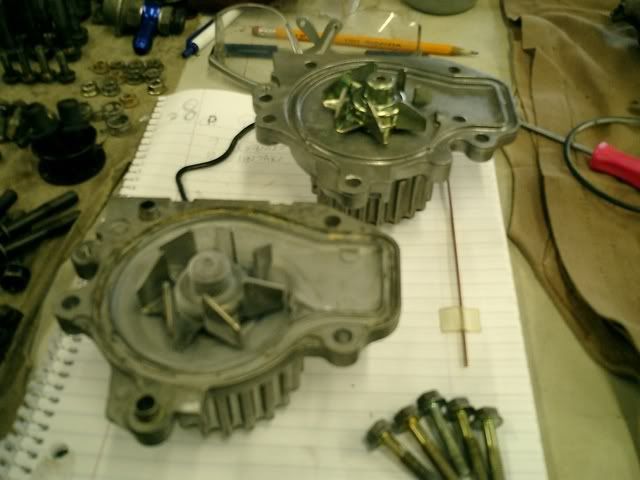

The water pump I was going to use didn’t have the alignment dowels so I just used the one I had from my other car.

http://i197.photobucket.com/albums/aa271/shrekb18/CRX400.jpg?t=1232254979

Got a lot done today. I have to weld the oil pan up, it had a hole from a turbo drain, Going to start cleaning up the intake manifold tomarrow, Need to order a inake gasket and some studs.

http://i197.photobucket.com/albums/aa271/shrekb18/CRX401.jpg?t=1232255047

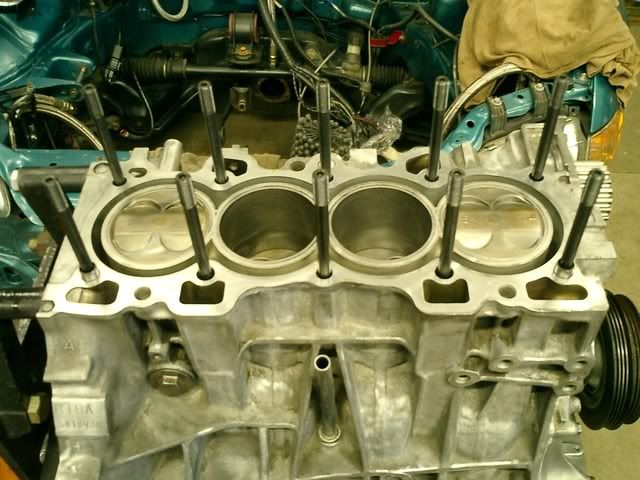

http://i197.photobucket.com/albums/aa271/shrekb18/CRX402.jpg?t=1232255107

http://i197.photobucket.com/albums/aa271/shrekb18/CRX403.jpg?t=1232255218

http://i197.photobucket.com/albums/aa271/shrekb18/CRX404.jpg?t=1232255328

http://i197.photobucket.com/albums/aa271/shrekb18/CRX405.jpg?t=1232255634

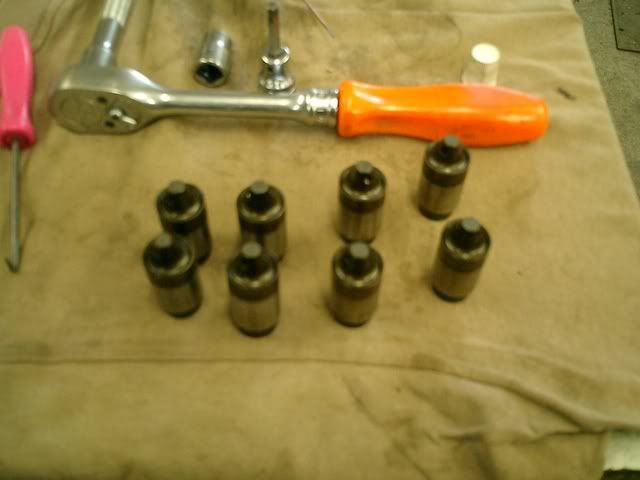

http://i197.photobucket.com/albums/aa271/shrekb18/CRX406.jpg?t=1232255692

http://i197.photobucket.com/albums/aa271/shrekb18/CRX407.jpg?t=1232255741

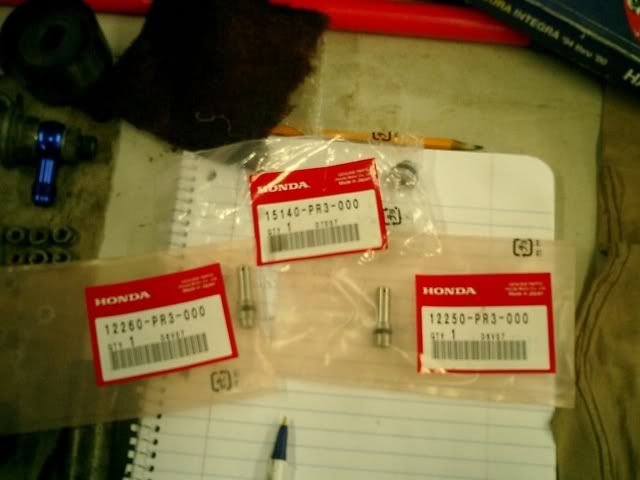

http://i197.photobucket.com/albums/aa271/shrekb18/CRX408.jpg?t=1232255794

http://i197.photobucket.com/albums/aa271/shrekb18/CRX409.jpg?t=1232255838

http://i197.photobucket.com/albums/aa271/shrekb18/CRX410.jpg?t=1232255886

http://i197.photobucket.com/albums/aa271/shrekb18/CRX411.jpg?t=1232255934

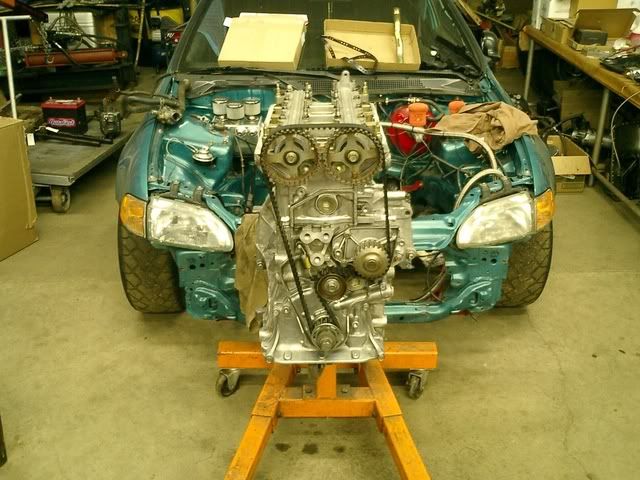

http://i197.photobucket.com/albums/aa271/shrekb18/CRX412.jpg?t=1232255990

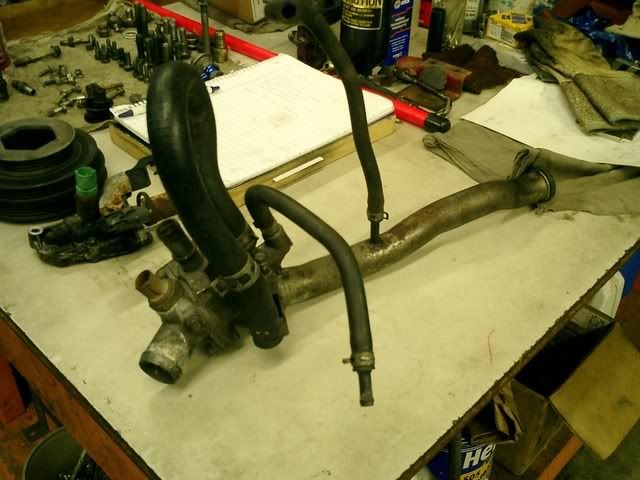

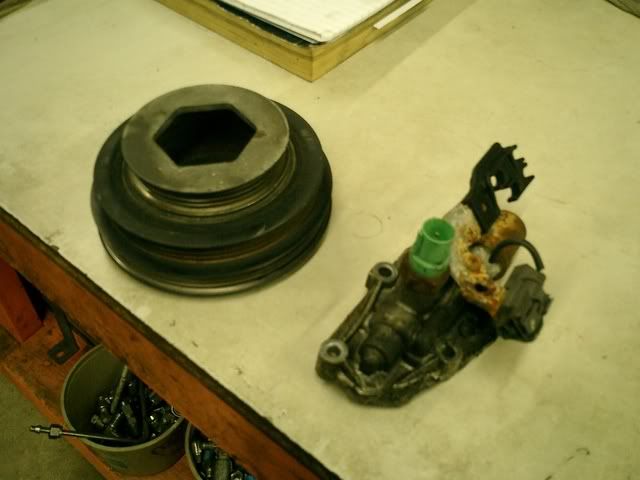

To be cleaned - Befor pic
http://i197.photobucket.com/albums/aa271/shrekb18/CRX413.jpg?t=1232256046

http://i197.photobucket.com/albums/aa271/shrekb18/CRX414.jpg?t=1232256118

I have aftermarkets mounts for a CRX, my issue is with the part that bolts to the block, I dont seem to have the right one. I will see what the 90=93 tegs look like. So how do you tell the T brackets apart?

hey man, do you have the part number for those adapters for the breater box?

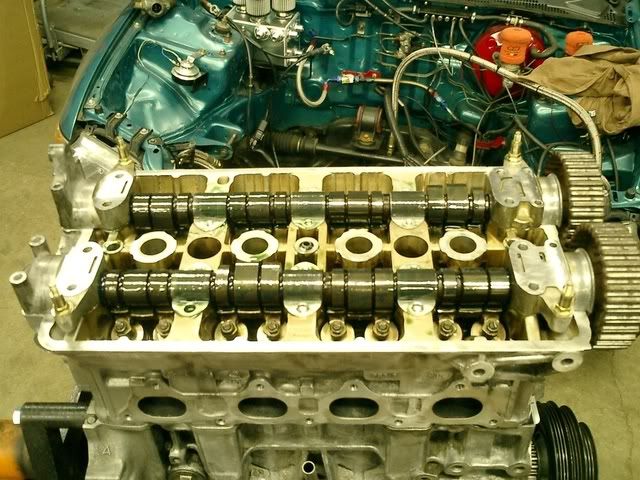

nice cams there :wink:

Thanks!!

thanks man. :tup:

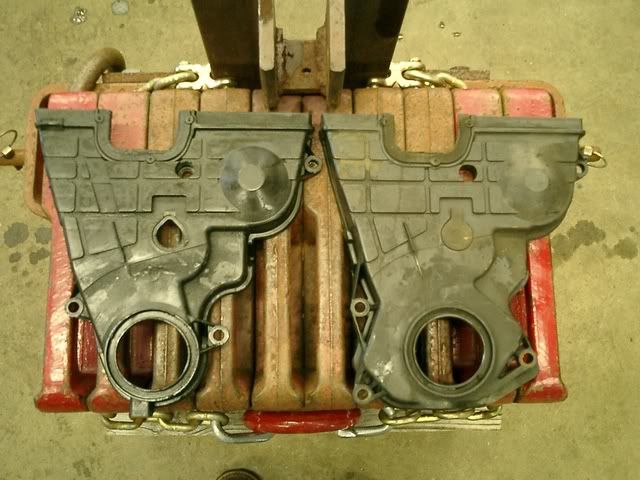

I had two outer covers, used the one on the left. The one on the right is for a LS
http://i197.photobucket.com/albums/aa271/shrekb18/CRX600.jpg?t=1232405714

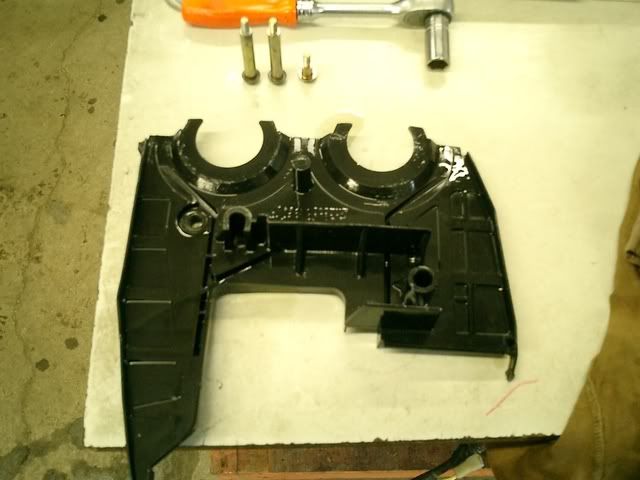

Here’s the cover I didn’t realized needed to go on before the cams… that sucked
http://i197.photobucket.com/albums/aa271/shrekb18/CRX601.jpg?t=1232405739

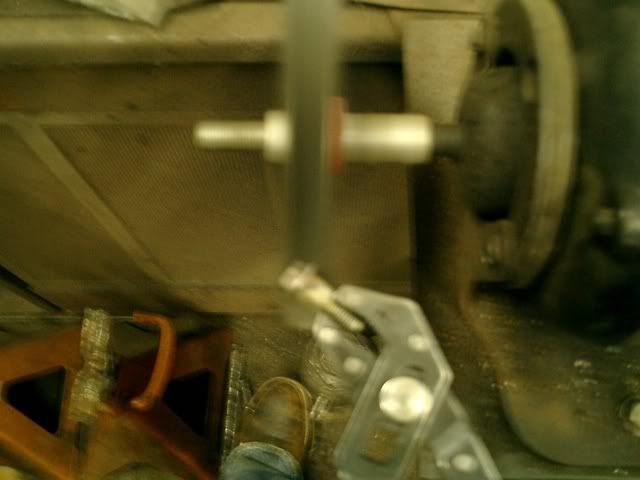

My trick to cleaning rusty bolts
http://i197.photobucket.com/albums/aa271/shrekb18/CRX602.jpg?t=1232405766

http://i197.photobucket.com/albums/aa271/shrekb18/CRX603.jpg?t=1232405788

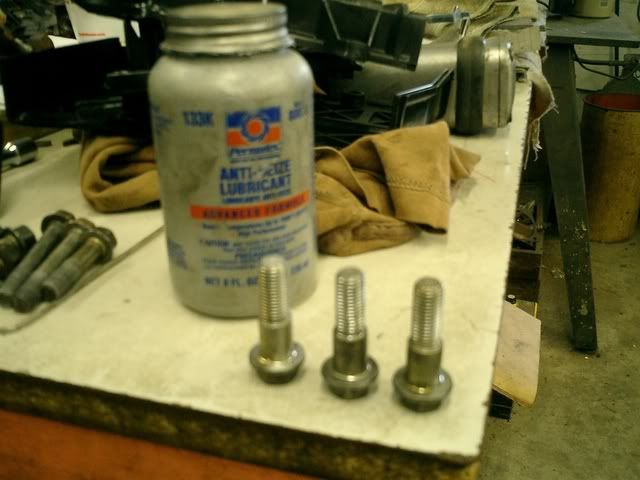

Cleaned up the 3 bolts for the intermediate shaft. I anti seize most bolts, installed so I don’t lose track off them

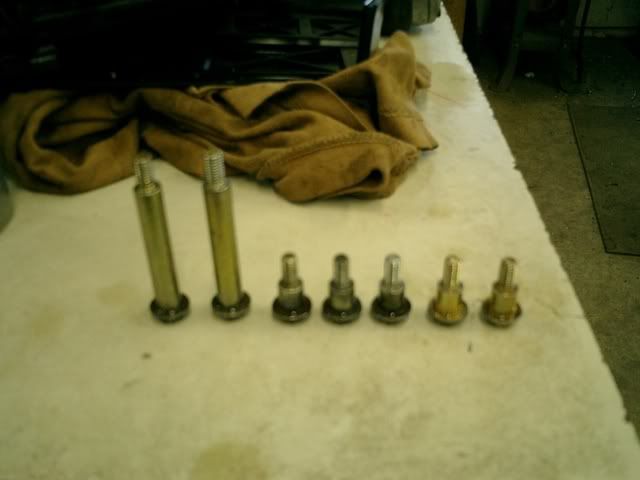

These are all the bolts that hold on the timing belt cover
http://i197.photobucket.com/albums/aa271/shrekb18/CRX605.jpg?t=1232405834

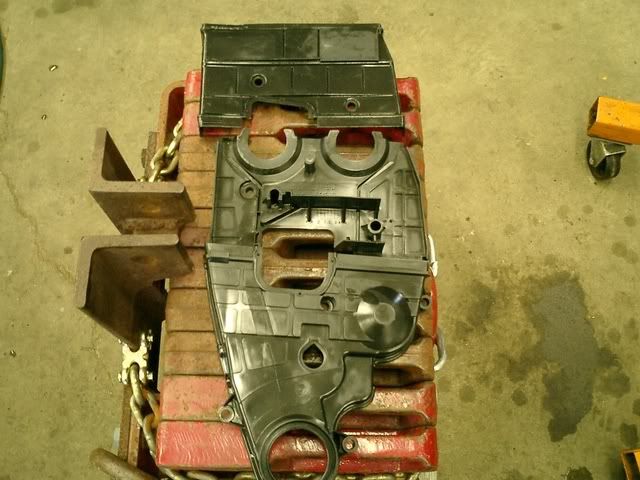

Covers cleaned
http://i197.photobucket.com/albums/aa271/shrekb18/CRX606.jpg?t=1232405853

http://i197.photobucket.com/albums/aa271/shrekb18/CRX607.jpg?t=1232405875

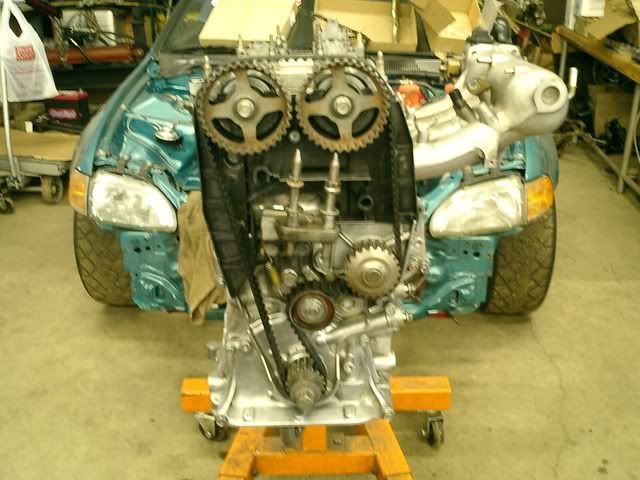

The second time I had to install the belt and align everything
http://i197.photobucket.com/albums/aa271/shrekb18/CRX608.jpg?t=1232405900

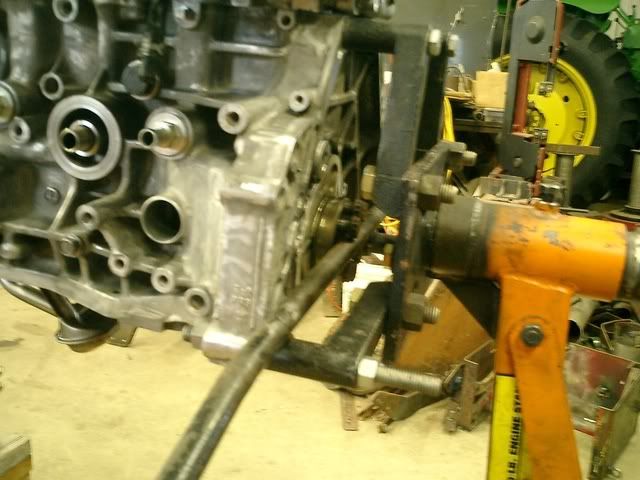

Torque the pulley 130ft lbs. used this pipe to hold the flywheel bolts
http://i197.photobucket.com/albums/aa271/shrekb18/CRX609.jpg?t=1232405917

http://i197.photobucket.com/albums/aa271/shrekb18/CRX610.jpg?t=1232405937

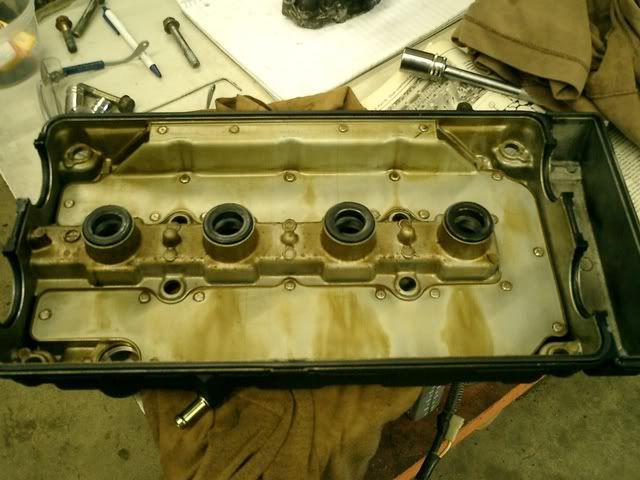

Installed the gaskets in the valve cover
http://i197.photobucket.com/albums/aa271/shrekb18/CRX611.jpg?t=1232405960

http://i197.photobucket.com/albums/aa271/shrekb18/CRX612.jpg?t=1232405983

http://i197.photobucket.com/albums/aa271/shrekb18/CRX613.jpg?t=1232406041
Alternator brackets and bolts
http://i197.photobucket.com/albums/aa271/shrekb18/CRX614.jpg?t=1232406061

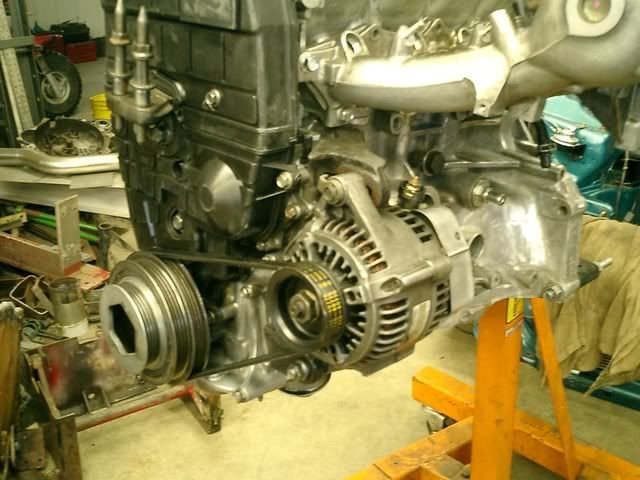

Alternator installed
http://i197.photobucket.com/albums/aa271/shrekb18/CRX615.jpg?t=1232406081

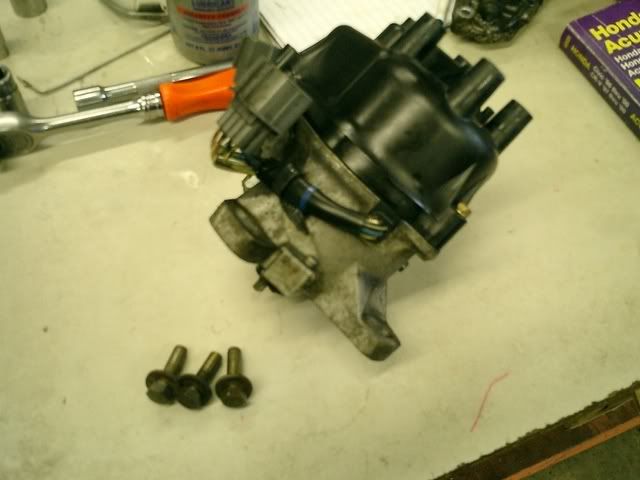

The distributor stills needs to be taken apart and cleaned but I gathered up the bolts clean them and install them to keep track.
http://i197.photobucket.com/albums/aa271/shrekb18/CRX616.jpg?t=1232406102
I installed plugs to keep dirt out of the cylinders. What should I gap them to? I think the book said .043?
http://i197.photobucket.com/albums/aa271/shrekb18/CRX617.jpg?t=1232406120

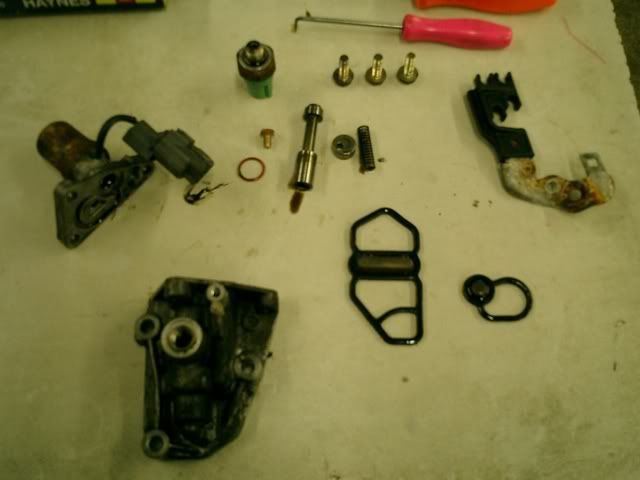

The last thing I did was take apart the vtec solenoid to be cleaned.
Still have parts to clean and go thru… I have to order a intake gasket and a freeze plug

lol… trade me motors :slight_smile:

that other bottom cover looks to be from a 96- up motor with the sensor

We can talk

I’v never had one of them, the LS has the CPS also
